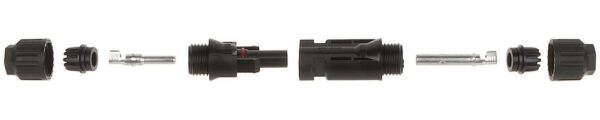

Set of 5 MC4 Connectors for Photovoltaic Installations, JRH – MC4

MC4-type connectors are used for installing photovoltaic systems. They stand out for their high resistance to harsh weather
conditions and ease of installation.

• MC4 connectors for solar panels
• Includes: 5 MC4 female connectors + 5 MC4 male connectors
• Water-resistant rubber sealing design
• Contact material: copper, tin-plated
• Insulation material: PPO
• Working voltage: DC 1000 V (max.)
• Working current: 25 A
• Flame class: UL94-V0
• Contact resistance: ≤ 5 mΩ
• Enclosure protection rating: IP67
• Cable specification: 4 mm²
• Operating temperature: −40℃ ~ 85℃
• Safety class: II
• Insertion force: ≤ 50 N
• Withdrawal force: ≥ 50 N
• Package includes: 5 × MC4 female connectors, 5 × MC4 male connectors
